AutoCAD Command Wipeout: A Deep Dive Into How and When to Use It

When working in AutoCAD, precision is key, but sometimes there’s too much going on in a drawing. You might want to clean up certain parts without altering the main elements or redrawing everything. That’s where the AutoCAD command wipeout comes in handy. It’s a tool that allows you to hide specific portions of a drawing, making it look cleaner or emphasizing the digital keys details without deleting anything permanently.

In this article, we’re going to take an in-depth look at how the key AutoCAD command wipeout works, when to use it, and share some personal anecdotes and tips from my own experience.

What is the Wipeout Command in AutoCAD?

The Wipeout command in AutoCAD is a useful tool for concealing objects in your drawing without actually erasing them. Essentially, it creates a polygonal mask (or a boundary) that hides everything underneath it. This allows you to cover up cluttered or unnecessary parts of your AutoCAD drawing, but the hidden objects are still there and can be revealed if you remove the wipeout.

It’s like placing a white sheet over part of your work that you don’t want others to see, and this can be incredibly helpful in different scenarios.

When Would You Use the Wipeout Command?

There are several use cases for the AutoCAD command wipeou, our digitalallkeys guide got you covered t:

1. Cleaning Up Annotations: If you have a lot of text, dimensions, or leaders that overlap with drawing elements, a wipeout can make your drawing more readable by hiding the areas behind the text.
2. Creating Title Blocks or Frames: When setting up title blocks or frames, using AutoCAD wipeouts ensures nothing from the drawing overlaps with the borders or text boxes.
3. Simplifying Complex Drawings: If you’re working on a highly detailed part of a drawing but don’t need to see every element, you can use wipeouts to temporarily hide certain parts for better clarity.
4. Presentation-Ready Drawings: AutoCAD command wipeouts can help make a drawing look more professional by ensuring the most important elements are visible while unnecessary details are hidden.

Personally, I love using the wipeout command when working on big layouts or blueprints with intricate details that might overlap. It’s a lifesaver when you’re trying to avoid redrawing certain areas just to clean things up visually.

How to Use the Wipeout Command in AutoCAD

Step-by-Step Guide

Let’s break down how you can use the AutoCAD command wipeout effectively:

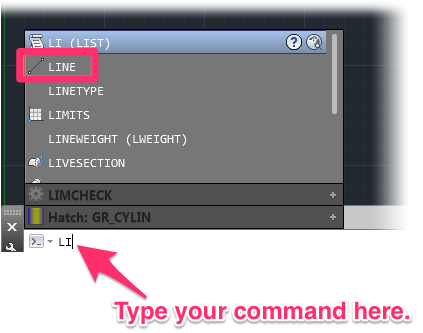

1. Type “WIPEOUT” in the Command Line: Open AutoCAD and type WIPEOUT in the command line, then press Enter. You’ll immediately be prompted to specify points to create the wipeout boundary.
2. Select the Points to Create the Boundary: You can manually click around the area where you want to place the wipeout. AutoCAD will then draw a polygon around those points. Think of this like drawing a boundary for what will be hidden underneath.
3. Choose a Polygon Shape or Existing Object: If you want, you can also use existing objects as your wipeout boundary. For example, if you have a closed polyline or a rectangle, you can use that as your wipeout boundary.
4. Apply and Adjust: After selecting your points or objects, the wipeout will be applied, and anything inside that boundary will be hidden. If you want to reveal the hidden area again, simply delete or modify the wipeout boundary.

Wipeout Tips & Tricks

• Frame On or Off: By default, AutoCAD displays a frame around the wipeout area. This frame can be distracting if you want a clean look. You can toggle this off by typing WIPEOUT > FRAME > OFF.
• Clip the Wipeout: You can also use the CLIP command to modify or edit wipeout areas, similar to how you clip external references (Xrefs).
• Layer Control: Put your wipeouts on a separate layer to easily manage visibility. If you need to temporarily hide all wipeouts, simply turn off the layer they’re on.

An Anecdote: The First Time I Discovered Wipeout

The first time I stumbled upon the AutoCAD command wipeout was during a late-night rush job at an architecture firm. I had this incredibly dense drawing with layers of plumbing, electrical, and structural elements all overlapping in one section. It looked like spaghetti on the screen, and I didn’t have the luxury of time to clean it all up. Someone in the office mentioned the key AutoCAD command wipeout, and in that moment, it was like magic.

I used wipeout to mask over the unnecessary parts, cleaned up the drawing instantly, and was able to get it to my boss without stressing over how messy it had looked before. Since then, wipeout has been a go-to tool for situations like these.

Common Issues with the Wipeout Command

As great as the AutoCAD wipeout command can be, it does come with some common challenges that are worth addressing.

1. Overlapping Wipeouts

One of the issues with using wipeouts, especially in large drawings, is that if you have multiple wipeouts overlapping, it can become tricky to select and edit the correct one. AutoCAD doesn’t have a great way of distinguishing between overlapping wipeouts, so you may need to carefully manage and name your layers or regions to avoid this confusion.

2. Printing Wipeouts

Another common complaint is that wipeouts sometimes cause printing issues. When you go to print or plot your AutoCAD drawing, the wipeout may print as a solid white box instead of cleanly removing the area behind it. To fix this, ensure that your wipeout frames are turned off and that you’re using a transparent plotting style.

3. Compatibility with Other Programs

If you’re working in a collaborative environment where others are using different CAD programs or if your drawings need to be exported into different formats, wipeouts don’t always transfer perfectly. This can lead to issues where the hidden areas suddenly become visible when opened in another program. A workaround is to keep an original version of your drawing without wipeouts or convert the masked areas into solid white fills before sharing.

Alternatives to the Wipeout Command

While the key AutoCAD command wipeout is incredibly useful, it’s not the only option for hiding parts of your AutoCAD drawing. Here are a couple of alternatives that can achieve similar results:

1. Solid Hatch

Using a solid hatch with a white color can give you a similar effect to wipeouts. This method can be a bit more cumbersome because you’ll need to create a separate hatch object, but it works well if you’re having trouble with wipeouts not printing correctly.

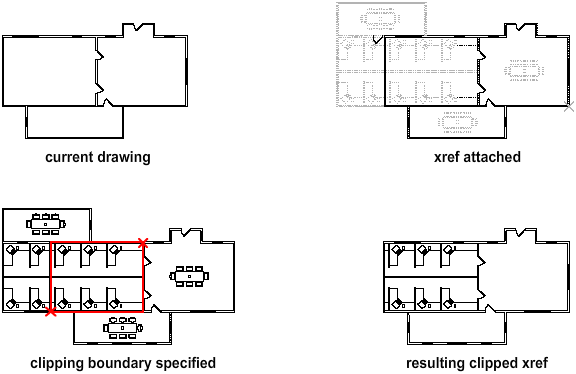

2. Clipping an Xref or Block

If you’re using external references (Xrefs) or blocks, you can clip them to hide unnecessary parts. This method is especially useful when you only need to hide parts of an external file rather than parts of your own drawing.

When Not to Use Wipeouts

While the wipeout command in AutoCAD is incredibly helpful, there are a few scenarios where it’s not the best choice:

1. Overuse in Detailed Drawings: If your drawing is very detailed and has lots of small parts, overusing wipeouts can lead to confusion down the line when trying to select objects. Instead, consider using layers or other methods to control visibility.
2. Collaboration with Others: If you’re working on a project that will be shared or modified by others who may not be familiar with wipeouts, it can cause issues.
3. Exporting for Other Software: Wipeouts don’t always translate well when exporting files to other formats. If you’re planning to send your AutoCAD files to someone using different software, it might be better to use clipping boundaries or solid hatches.

Final Thoughts: Mastering Wipeouts in AutoCAD

The AutoCAD command wipeout is one of those tools that can really streamline your workflow and help you present cleaner, more readable drawings. Whether you’re dealing with busy drawings that need to be simplified or want to make sure your text annotations stand out, wipeouts provide a flexible way to hide what’s unnecessary without deleting anything permanently.Just remember to manage your wipeouts carefully, particularly when it comes to printing or collaborating with others. And if wipeouts start acting up, there are always alternatives like solid hatches or clipping blocks. Learning to master this key AutoCAD command wipeout can significantly improve your efficiency and drawing quality.
